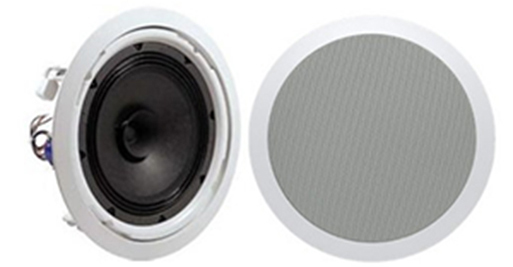

Technitia Dual Cone Ceiling Speaker

Key Features:

  • Commercial ceiling speaker with transformer
  • Ideal for school, office, hotel and airport BGM
  • Rated power output 6W-3W-1.5W at 100V
  • 5" dual cone full range paper woofer
  • Line input of 100V or 70V
  • ABS enclosure and metal grille in white
  • Flush mount in-ceiling quick and secure installation

Simplified installation: Technitia Dual cone ceiling speakers have only one driver that handles both low and high frequencies, which means they require only one cutout and one set of wires to install. This can save time and money compared to installing separate woofers and tweeters.

Stereo sound from one speaker: Dual cone ceiling speakers have two voice coils that can receive left and right stereo signals independently, which means they can produce stereo sound from a single speaker. This can be useful for small or narrow spaces where installing two speakers is not feasible or desirable.

Wide dispersion: Dual cone ceiling speakers have a cone-shaped diaphragm that radiates sound in all directions, which means they can cover a large area with even and consistent sound. This can be beneficial for background music, paging, or public address systems in commercial settings

Technical Specifications:

Model   TCS-506   TCS-510   TCS-515
Description   5" Dual Cone Ceiling Speaker   6" Dual Cone Ceiling Speaker   8" Dual Cone Ceiling Speaker
Rated Power Output   6W-3W-1.5W   10W-6W-3W   15W-10W-5W
Line Input   100V or 70V   100V or 70V   100V or 70V
Frequency Response   110-18KHz   110-18KHz   110-20KHz
SPL(@1W/m)   92dB   92dB   96dB
Speaker Unit   5" full range dual cone woofer   6" full range dual cone woofer   8" full range dual cone woofer
Cutout Size   168mm   195mm   230mm
Dimension   203(D)x85(H)mm   203(D)x85(H)mm   265(D)x95(H)mm
Material   ABS enclosure and metal grille in white   ABS enclosure and metal grille in white   ABS enclosure and metal grille in white
Mounting Way   Flush mount in-ceiling quick and secure installation   Flush mount in-ceiling quick and secure installation   Flush mount in-ceiling quick and secure installation
Weight   0.7kg   0.9kg   1kg
