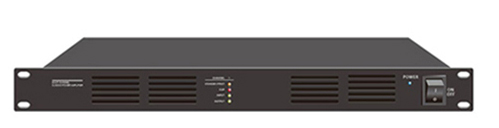

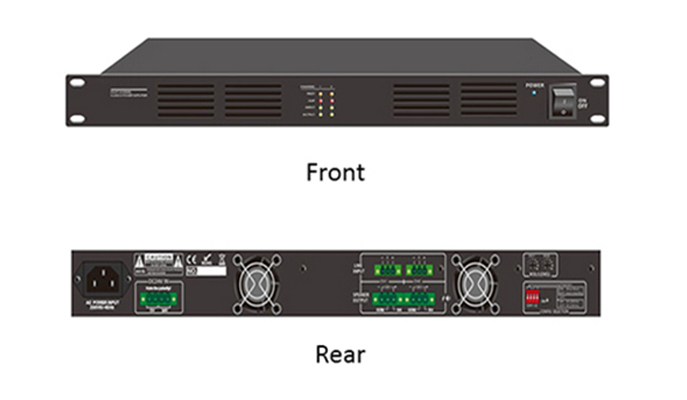

Digital Class-D Single Channel Power Amplifier

Overview

The digital class-D power amplifier in the Technitia TA Series range uses switching power technology, which has minimal power consumption and efficiency levels up to 85%. In addition, it reduces heat production, which helps to increase the performance life of the amplifier.

The Technitia TA Series can be used as a digital public address system at a low cost because of its 120W to 500watt rated power output. The adaptable loudspeaker outputs, which come in high impedance 100V and low impedance 4-16 ohms, allow it to be used for both fixed installations of PA systems and installations of hi-fi stereo systems. There is only one balanced input with gain control on the Phoenix connector. Speaker outputs might be 4-16 ohms or 100V. The dip switch pre-setting could be used to enable or disable the built-in high-pass filters. Automatic standby is enabled after a minute of no signal input detection, and it awakens right away on any input. Protection, clip, input, and output are all visual working state indicators for simple oversight. full overload, high temperature, clip, short circuit, and DC protection. Switchable AC power supply from 115V to 230V allows for the installation of sound systems anywhere in the world.
Key Features:
Switching power technology digital power amplifier Less rack space and less heat generation Rated power output at 120W Balanced XLR input by phoenix connector Each input with separate gain control. Built-in auto standby feature to save power consumption Complete short circuit, overload, high temp, clip and DC protection		Class-D PA power amplifier of minimum power consumption Single channel power amplifier into 19” rack mount unit Speaker outputs 4-16Ω/100V 24V DC input as option at order request. Each channel with high-cut filter. Separate indicators for protection, clip, input and output Wide AC input switchable between 115V and 230V

Technical Specifications:

Model	TA-120D	TA-240D	TA-350D	TA-500D
Description	Class-D Single Channel Power Amplifier
Rated Power Output	120W	240W	350W	500W
Speaker Output	4-16Ω & 100V
Frequency Response	L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input	0.775V, 0dBu, balanced phoenix connector
Input Impedance	10KΩ
THD	< 0.1% (1KHz/-3dBv, 100W)
S/N Ratio	>80dB
Crosstalk	>60dB, 1KHz, Max output
Power Consumption	200W	3000W	420W	550W
Power Supply	>AC input switchable between 115V & 230V, 50-60Hz 24V DC input as option at order request.
Dimension	>482(W)x420(D)x44(H) mm

Weight	4.2kg	4.5kg	5KG	5.5KG

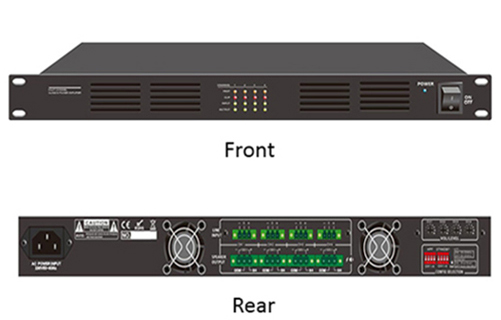

Technitia Digital Class-D Two Channel Power Amplifier

Overview

The TA-2500D range digital class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span as a result.

The Technitia TA Series has a wide range of models from TA-2120D to TA-2500D series is of rated power output at 2×120W to 2 x 500Watt so it could be used as two zone multiple sources public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 8ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs.

There are two balanced inputs by phoenix connector for each channel with gain control. Two separate zone speaker outputs both by 100V & 8ohms. The built-in two channel separate high-pass filters could be enabled or disabled through the dip switch pre-setting.

Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. Visual working status indicators include protection, clip, input and output for easy supervision. With complete short circuit, overload, high temp, clip and DC protection. Switchable AC power supply from 115V to 230V, thus it support worldwide sound system installation. 24V DC input is included.

Key Features:

Switching power technology digital power amplifier
1RU height for less rack space and less heat generation
Rated power output at 2x120W to 2x500W
Balanced line input by phoenix connector for two channels
Each two channel with high-cut filter
Separate two channel indicators for protection, clip, input and output
Wide AC input switchable between 115V and 230V

Class-D PA power amplifier of minimum power consumption
Two channel power amplifier into 19” rack mount unit
Two channel separate speaker outputs 8Ω/100V
Each input with separate gain control
Built-in auto standby feature to save power consumption
Complete short circuit, overload, high temp, clip and DC protection
24V DC input is included

Technical Specifications:

Model	TA-2120D	TA-2240D	TA-2350D	TA-2500D
Description	Class-D Two Channel Power Amplifier
Rated Power Output	2*120W	2*240W	2*350W	2*500W
Speaker Output	4-16Ω & 100V
Frequency Response	L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input	0.775V, 0dBu, balanced phoenix connector
Input Impedance	10KΩ
THD	< 0.1% (1KHz/-3dBv, 100W)
S/N Ratio	>80dB
Crosstalk	>60dB, 1KHz, Max output
Power Consumption	300W	55000W	800W	1100W
Power Supply	>AC input switchable between 115V & 230V, 50-60Hz 24V DC input as option
Dimension	>482(W)x420(D)x44(H) mm

Weight	7kg	7.5kg	8KG	8.5KG

Digital Class-D Four Channel Power Amplifier

Overview

The FA-4120D range digital class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span as a result.

The Technitia TA series has wide range of models from TA-4120D to TA-4500D is of rated power output at 4×120W to 4x500W, so it could be used as four zone multiple sources public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 4ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs. There are four balanced inputs by phoenix connector for each channel with gain control. Four separate zone speaker outputs both by 100V & 4ohms. The built-in four channel separate high-pass filters could be enabled or disabled through the dip switch pre-setting. Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. Visual working status indicators include protection, clip, input and output for easy supervision. With complete short circuit, overload, high temp, clip and DC protection. Switchable AC power supply from 115V to 230V, thus it support worldwide sound system installation.

Key Features:

Switching power technology digital power amplifier
Less rack space and less heat generation
Rated power output at 4x120W
Balanced XLR input by phoenix connector for four channels
Each four channel with high-cut filter.
Separate four channel indicators for protection, clip, input and output
Wide AC input switchable between 115V and 230V

Class-D PA power amplifier of minimum power consumption

Four channel power amplifier into 19" rack mount unit

Four channel separate speaker outputs 4Ω/100V

Each input with separate gain control

Built-in auto standby feature to save power consumption

Complete short circuit, overload, high temp, clip and DC protection

DC24V is optional

Technical Specifications:

Model	TA-4120D	TA-4240D	TA-4350D	TA-4500D
Description	Class-D Four Channel Power Amplifier
Rated Power Output	4*120W	4*240W	4*350W	4*500W
Speaker Output	4Ω & 100V
Frequency Response	L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input	0.775V, 0dBu, balanced phoenix connector by Four Channel
Input Impedance	10KΩ
THD	< 0.1% (1KHz/-3dBv, 100W)
S/N Ratio	>80dB
Crosstalk	>60dB, 1KHz, Max output
Power Consumption	600W	12000W	1750W	2300W
Power Supply	>AC input switchable between 115V & 230V, 50-60Hz
Dimension	>482(W)x420(D)x44(H) mm

Weight	8.5kg	9kg	9.5KG	15KG

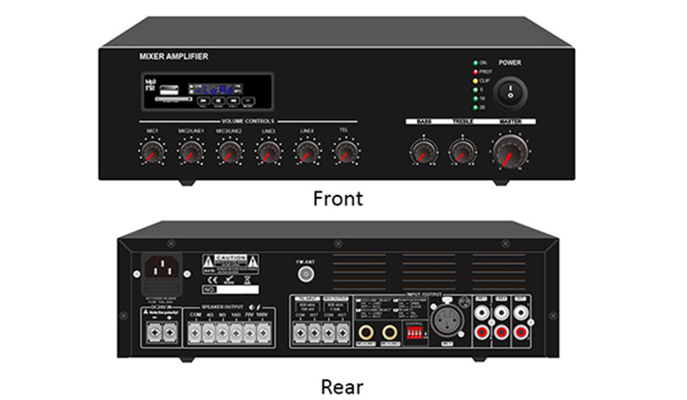

Mini Table Top Mixer Amplifier with Source

Key Features:

Compact mini size public address amplifier
Ideal for classroom sound system use
Built-in 100V/70V transformer technology
Tabletop amplifier with Mp3 player, FM radio & blue tooth
Rate power output at 30W, 60W to 120W. Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
LED indicators for power, clip, protect and signal

Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3 microphone or line
switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line output.
Telephone input with VOX priority and MOH (Music on Hold).

Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master
With short-circuit, clip, overload and high temp protection
AC 220V or 115V & 24V DC both operation system

Technical Specifications:

Model	TA-30E	TA-60E	TA-120E
Description	Public Address System Mixer Amplifier
Rated Power Output	30W	60W	120W
Speaker Output	70V, 100V and 4- 16Ω
Input	Mic1-3: 600ohms(Ω)5-8 mV,unbalanced, Line1-2: 10kohms(Ω)mV, unbalanced
Input	0.775V, 0dBu, balanced phoenix connector by Four Channel
Frequency Response	60- 15KHz
THD	< 0 .5%at1kHz,1/3rated power
S/N Ratio	>Line:85dB,MIC:>72dB
Protection	>High temp, short circuit, overload protection
Power Supply	>AC230V or DC24V, 50-60Hz
Power Consumption	45W	1000W	200W
Dimension	>300(W)×275(D)×88(H)mm
Gross Weight	5.5kg	6.6kg	7.8kg

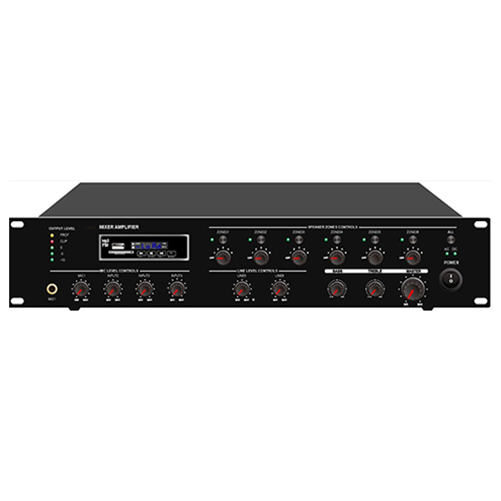

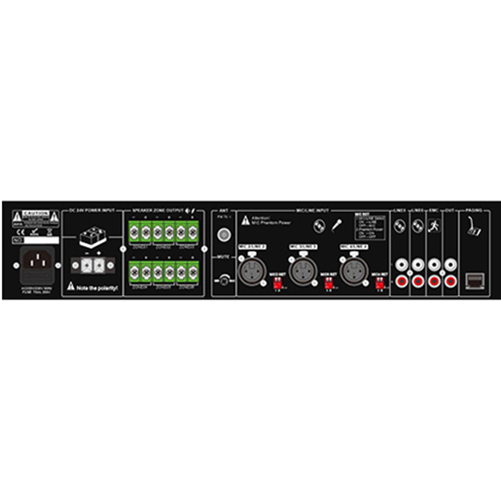

6 Zone Mixer Amplifier with Source

Overview

The Technitia PA 6 Zone Mixer Amplifier with MP3 and FM Tuner is perfect for usage in schools, supermarkets, banks, hotels, and other public places. Its rated power output ranges from 60W to 500W.

It is an all-in-one system that combines two sources, a preamplifier, and a mixing power amplifier into a single 19" 2U height box. Along with Mic1 (6.3mm) and Mic/Line input 2-4 (XLR), two line inputs, one EMC input, and one RJ45 input for a six-zone remote paging microphone, it combines two audio sources into a mixer amplifier. Mic1 VOX is given priority over all inputs except EMC. Installers and end users can easily access and use the front-facing USB and SD slots.

To prevent any damage, the amplifier is completely protected from overload, short circuit, and excessive temperature. These amplifiers can be used in a bank, mosque, school, hotel, restaurant, theme park, or retail centre, among other places

Key Features:
Public address (PA) 6 zone commercial mixer power amplifier. Rated outputs of 60W, 120W, 240W, 350W to 500W Six zone speaker outputs with independent volume control Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4 (XLR) EMC input on rear panel with highest priority by RCA Microphone1 of VOX features of highest input priority except EMC input AC and DC Power, protection, clip six zone status indicators and output level meters AC 230V and DC24V operation system		19” rack mount amplifier of 2U height 6 zone speaker outputs of 100V or 70V Built-in MP3 player by USB & SD and FM tuner and Blue tooth Line 1-2 inputs on rear panel by RCA One amplifier capacity of 6 remote paging microphones FA-60RM up to 300 meters Volume control for Mic1-4 and line 1-2, bass & treble and zone volume control on front panel Overload, short circuit and high temp protection

Technical Specifications:

Model	TA-60R	TA-120R	TA-240R	TA-350R	TA-500R
Description	Public Address System 6 Zone Mixer Amplifier
Rated Power Output	60W	120W	240W	350W	500W
Speaker Output	70V, 100V , 6 Zone Speaker Out 100V
Input	Mic1-3: 600ohms(Ω)5-8 mV,unbalanced, Line1-2: 10kohms(Ω)mV, 150-470mV, unbalanced
Frequency Response	60- 15KHz
THD	< 0 .5%at1kHz, 1/3rated power
Protection	High temp, Short circuit, Overload protection
Power Supply	AC230V or AC110V, 50-60Hz
Power Consumption	100W	200W	400W	500W	600W
Dimension	418(W)×318(D)×88(H)mm
Gross Weight	8.2Kg	9.5Kg	12Kg	13Kg	14.5Kg

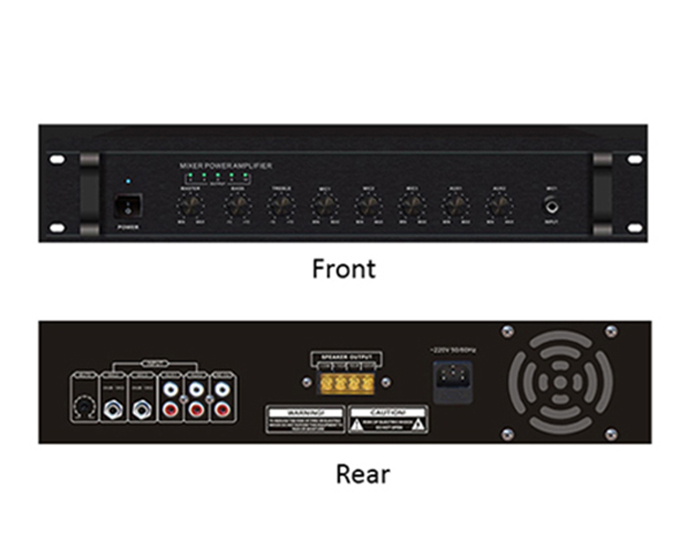

Public Address Mixing Amplifier

Overview

The Public Address (PA) Mixer Amplifier is appropriate for speech and BGM use in schools, supermarkets, banks, and hotels. Preamplifier and mixer power amplifier are combined into a single 19" 2U height tabletop equipment for a cost-effective but highly reliable performance.

The desktop mixing amplifier has a 60W–500W power output rating. For flexible connections, it has speaker outputs with 100V, 70V, and 416 ohms. Three microphones and two line inputs are integrated. Priority mic 1 VOX. Line 1 and 2 on the back panel by RCA inputs, microphone 1 on the front panel by phone jack and microphones 2 and 3 on the back panel by phone jack. Front panel volume controls for the microphone, line, and inputs 1 and 3 include treble and bass tone controls.

To prevent any damage, the amplifier is completely protected from overload, short circuit, and excessive temperature.

Key Features:
Public address (PA) tabletop mixer power amplifier Rated outputs of 60W/120W/240W/350W/500W 3 microphone inputs and 2 line inputs Line 1-2 inputs on rear panel by RCA Microphone1-3 & Line1-2 inputs volume control on front panel with bass and treble tone control Overload, short circuit and high temp protection		Commercial & industrial range BGM & paging amplifier 70V, 100V and low impedance 4-16 ohms speaker outputs Mic1 on front panel by phone jack, mic2-3 on rear panel by phone jack Microphone1 of VOX features of highest input priority Power and output level meters With natural cooling fan to control the internal temperature

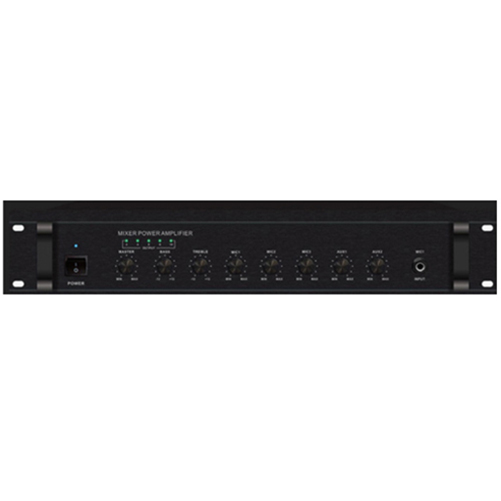

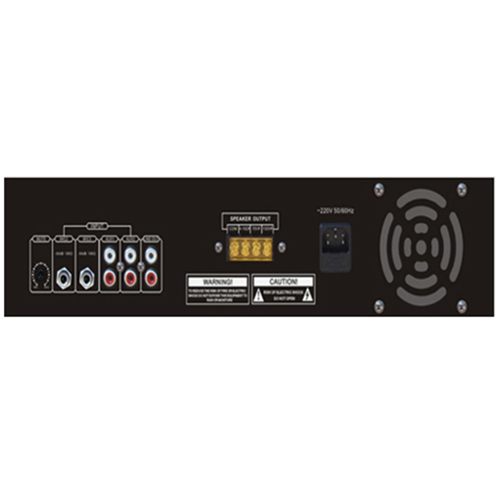

Technitia TA-240M Mixer Amplifier

Overview

Technitia Public Address (PA) Mixer Amplifier is appropriate for speech and BGM use in schools, supermarkets, banks, and hotels. Preamplifier and mixer power amplifier are combined into a single 19" 2U height tabletop equipment for a cost-effective but highly reliable performance.

The mixer amplifier rated power out at 240W. Its speaker outputs with 100V, 70V and 4‐16ohms for versatile connections. It integrates three microphone and two line inputs. Mic1 VOX with priority. Microphone1 on front panel by phone jack, microphone2‐3 on rear panel by phone jack, line 1‐2 on rear panel by RCA inputs. Microphone1‐3 & Line1‐2 inputs volume control on front panel with bass and treble tone control.

The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage.

Key Features:
Public address (PA) tabletop mixer power amplifier Mixer amplifier built-in Mp3 player by USB 70V, 100V and low impedance 4-16 ohms speaker outputs Mic1 on front panel by phone jack, mic2-3 on rear panel by phone jack Microphone1 of VOX features of highest input priority Power and output level meters With natural cooling fan to control the internal temperature		Commercial & industrial range BGM & paging amplifier Rated outputs of 240W 3 microphone inputs and 2 line inputs Line 1-2 inputs on rear panel by RCA Microphone1-3 & Line1-2 inputs volume control on front panel with bass and treble tone control Overload, short circuit and high temp protection

Technical Specifications:

Model		TA-240M
Description		Public Address System 240W Mixer Amplifier
Rated Power Output		240W RMS
Input		Mic1-3: 600 ohms 5-8 mV, unbalanced, Line1-2: 10k ohms 150-470 mV,unbalanced
Frequency Response		60-15KHz
THD		< 0.5% at 1kHz, 1/3 rated power
S/N Ratio		Line: 85 dB , MIC: >72 dB
Protection		High temp, short circuit, overload protection
Power Supply		AC230V or AC110V, 50-60Hz
Power Consumption		350W
Dimension		484(W)×366(D)×88(H)mm
Packaging:		520(W)×435(D)×185(H)mm
Net. Weight		13.7kg
Gross Weight		15.4kg

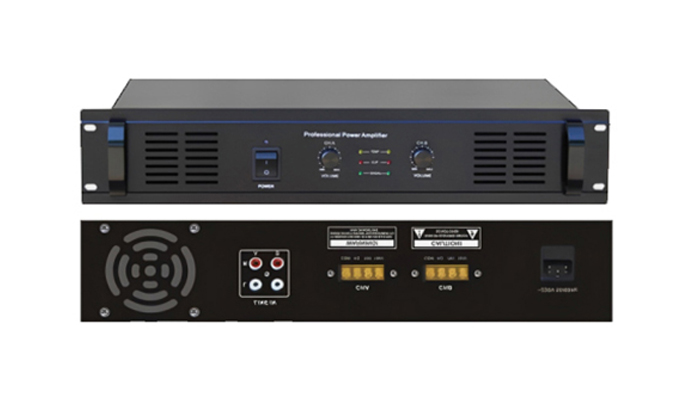

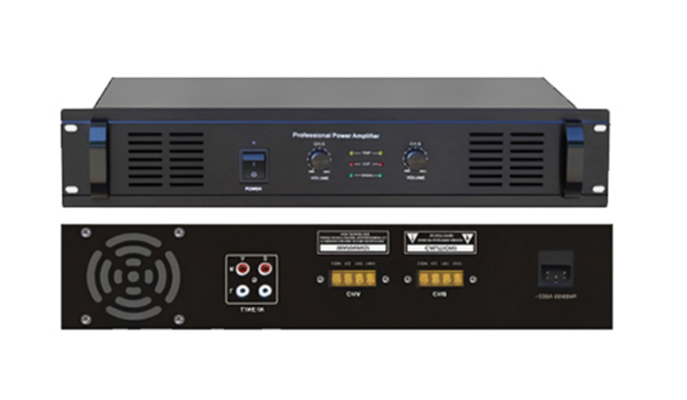

TA-2120A Dual Channel Power Amplifier

Key Features:

Rack mount PA 100 Volt two channel power amplifier in 2U type
Rated power of 2×120W for dual zone public address system.
70V, 100V and 4-16 ohm two channel separate speaker outputs
Isolated transformer for human safety operation
Unbalanced two channel line inputs by RCA type.
Reliable protection of over heat, over load, clip & short circuit
Indications for power, signal, clip, protection and temp
DC 24V power supply backup input (optional)

Technitia's Two channel power amplifiers for PA systems are intended for general commercial and industrial public address applications. A variety of options are available to accommodate the needs of various sized sound systems due to a rack mount design in 2U form & rated power of 2x120W by two channels. Two unbalanced line inputs might be used to directly input audio from sources or from a mixer and preamplifier. When choosing different speaker pairings, 70V, 100V, and 4-16 ohm speaker by two channel independent outputs are practical for installation. They can also be used as two separate zones for individual control. There are two channel-specific volume controls available. Complete protection covers overload, excessive temperature, short circuit, and clip. Power, signal, clip, protection, and temperature indicators.

Technical Specifications:

Model		TA-2120A
Description		PA System Two Channel Power Amplifier
Rated Power Output		2×120W
Speaker Output		100V, 70V, 4-16Ω
Input		unbalanced two RCA line inputs
Frequency Response		60-15KHz
S/N Ratio		≥85dB
THD		Less than 0.5% at 1KHz, 1/3 rated power
Cooling System		Fan auto open when internal temp reaches 55°C
Protection		Temp, overload, short circuit & clip
Power Supply		AC230V or 110V, 50-60Hz
Power Consumption		310W
Dimensions		484x366x88mm
Weight		11.5kg

TA-2240A Dual Channel Power Amplifier

Key Features

Rack mount PA 100 Volt two channel power amplifier in 2U type
Rated power of 2×240W for dual zone public address system.
70V, 100V and 4-16 ohm two channel separate speaker outputs
Isolated transformer for human safety operation
Unbalanced two channel line inputs by RCA type.
Reliable protection of over heat, over load, clip & short circuit
Indications for power, signal, clip, protection and temp
DC 24V power supply backup input (optional)

Technitia's Amplifiers for public address systems are available and are designed for use in a variety of commercial and industrial settings. A variety of options are available to accommodate the needs of various sized sound systems thanks to the rack mount design in 2U type and rated power of 2x240W by two channels. Two unbalanced line inputs might be used to directly input audio from sources or from a mixer and preamplifier. When choosing different speaker pairings, 70V, 100V, and 4-16 ohm speaker by two channel independent outputs are practical for installation. They can also be used as two separate zones for individual control. There are two channel-specific volume controls available. Complete protection covers overload, excessive temperature, short circuit, and clip. Power, signal, clip, protection, and temperature indicators.

Technical Specifications:

Model		TA-2120A
Description		Two Channel Power Amplifier
Rated Power Output		2×240W
Speaker Output		100V, 70V, 4-16Ω
Input		unbalanced two RCA line inputs
Frequency Response		60-15KHz
S/N Ratio		≥85dB
THD		Less than 0.5% at 1KHz, 1/3 rated power
Cooling System		Fan auto open when internal temp reaches 55°C
Protection		Temp, overload, short circuit & clip
Power Supply		AC230V or 110V, 50-60Hz
Power Consumption		620W
Dimensions		484x366x88mm
Weight		13.8kg

TA-2350A Dual Channel Power Amplifier

Key Features

Rack mount PA 100 Volt two channel power amplifier in 2U type
Rated power of 2×350W for dual zone public address system.
70V, 100V and 4-16 ohm two channel separate speaker outputs
Isolated transformer for human safety operation
Unbalanced two channel line inputs by RCA type.
Reliable protection of over heat, over load, clip & short circuit
Indications for power, signal, clip, protection and temp
DC 24V power supply backup input (optional)

Technical Specifications:

Model		TA-2350A
Description		Two Channel Power Amplifier
Rated Power Output		2×350W
Speaker Output		100V, 70V, 4-16Ω
Input		unbalanced two RCA line inputs
Frequency Response		60-15KHz
S/N Ratio		≥85dB
THD		Less than 0.5% at 1KHz, 1/3 rated power
Cooling System		Fan auto open when internal temp reaches 55°C
Protection		Temp, overload, short circuit & clip
Power Supply		AC230V or 110V, 50-60Hz
Power Consumption		620W
Dimensions		484x366x88mm
Weight		14.5kg

TA-2350A Dual Channel Power Amplifier

Key Features

Rack mount PA 100 Volt four channel power amplifiers in 2U type.
Rated power of 4×60W for four zone public address system.
70V, 100V and 4-16 ohm four channel separate speaker outputs.
Isolated transformer for human safety operation.
Unbalanced four channel line inputs by RCA type.
Reliable protection of over heat, over load, clip & short circuit.
Indications for power, signal, clip, protection and temp.
DC 24V power supply backup input (optional)

Technitia's Amplifiers for public address systems are available and are designed for use in a variety of commercial and industrial settings. A variety of options are available to accommodate the needs of various sized sound systems with the rack mount design in 2U type and rated power of 4x60W by four channels. Two unbalanced line inputs might be used to directly input audio from sources or from a mixer and preamplifier. When choosing different speaker pairings, 70V, 100V, and 4-16 ohm speaker by four channel independent outputs are practical for installation. They can also be used as Four separate zones for individual control. There are Four channel-specific volume controls available. Complete protection covers overload, excessive emperature, short circuit, and clip. Power, signal, clip, protection, and temperature indicators.

Technical Specifications:

Model		TA-4060A
Description		Four Channel 60W Power Amplifier
Rated Power Output		4×60W
Speaker Output		100V, 70V, 4-16Ω
Input		unbalanced two RCA line inputs
Frequency Response		60-15KHz
S/N Ratio		≥85dB
THD		Less than 0.5% at 1KHz, 1/3 rated power
Cooling System		Fan auto open when internal temp reaches 55°C
Protection		Temp, overload, short circuit & clip
Power Supply		AC230V or 110V, 50-60Hz
Power Consumption		360W
Dimensions		484x366x88mm
Weight		13.5kg

TA-4120A Four Channel Power Amplifier

Key Features

Rack mount PA 100 Volt four channel power amplifiers in 2U type.

Technitia's Amplifiers for public address systems are available and are designed for use in a variety of commercial and industrial settings. A variety of options are available to accommodate the needs of various sized sound systems with the rack mount design in 2U type and rated power of 4x120W by four channels. Two unbalanced line inputs might be used to directly input audio from sources or from a mixer and preamplifier. When choosing different speaker pairings, 70V, 100V, and 4-16 ohm speaker by four channel independent outputs are practical for installation. They can also be used as Four separate zones for individual control. There are Four channel-specific volume controls available. Complete protection covers overload, excessive temperature, short circuit, and clip. Power, signal, clip, protection, and temperature indicators.

Technical Specifications:

Model		TA-4120A
Description		Four Channel 120W Power Amplifier
Rated Power Output		4×120W
Speaker Output		100V, 70V, 4-16Ω
Input		unbalanced two RCA line inputs
Frequency Response		60-15KHz
S/N Ratio		≥85dB
THD		Less than 0.5% at 1KHz, 1/3 rated power
Cooling System		Fan auto open when internal temp reaches 55°C
Protection		Temp, overload, short circuit & clip
Power Supply		AC230V or 110V, 50-60Hz
Power Consumption		680W
Dimensions		484x366x88mm
Weight		18.5kg

TA-4180A Four Channel Power Amplifier

Key Features

Rack mount PA 100 Volt four channel power amplifiers in 2U type.
Rated power of 4×180W for four zone public address system.
70V, 100V and 4-16 ohm four channel separate speaker outputs.
Isolated transformer for human safety operation.
Unbalanced four channel line inputs by RCA type.
Reliable protection of over heat, over load, clip & short circuit.
Indications for power, signal, clip, protection and temp.
DC 24V power supply backup input (optional)

Technitia's Amplifiers for public address systems are available and are designed for use in a variety of commercial and industrial settings. A variety of options are available to accommodate the needs of various sized sound systems with the rack mount design in 2U type and rated power of 4x180W by four channels. Two unbalanced line inputs might be used to directly input audio from sources or from a mixer and preamplifier. When choosing different speaker pairings, 70V, 100V, and 4-16 ohm speaker by four channel independent outputs are practical for installation. They can also be used as Four separate zones for individual control. There are Four channel-specific volume controls available. Complete protection covers overload, excessive temperature, short circuit, and clip. Power, signal, clip, protection, and temperature indicators.

Technical Specifications:

Model		TA-4180A
Description		Four Channel 120W Power Amplifier
Rated Power Output		4×120W
Speaker Output		100V, 70V, 4-16Ω
Input		unbalanced two RCA line inputs
Frequency Response		60-15KHz
S/N Ratio		≥85dB
THD		Less than 0.5% at 1KHz, 1/3 rated power
Cooling System		Fan auto open when internal temp reaches 55°C
Protection		Temp, overload, short circuit & clip
Power Supply		AC230V or 110V, 50-60Hz
Power Consumption		950W
Dimensions		484x366x88mm
Weight		19.8kg

TA-4240A Four Channel Power Amplifier

Key Features

Rack mount PA 100 Volt four channel power amplifiers in 2U type.
Rated power of 4×240W for four zone public address system.
70V, 100V and 4-16 ohm four channel separate speaker outputs.
Isolated transformer for human safety operation.
Unbalanced four channel line inputs by RCA type.
Reliable protection of over heat, over load, clip & short circuit.
Indications for power, signal, clip, protection and temp.
DC 24V power supply backup input (optional)

Technitia's Amplifiers for public address systems are available and are designed for use in a variety of commercial and industrial settings. A variety of options are available to accommodate the needs of various sized sound systems with the rack mount design in 2U type and rated power of 4x240W by four channels. Two unbalanced line inputs might be used to directly input audio from sources or from a mixer and preamplifier. When choosing different speaker pairings, 70V, 100V, and 4-16 ohm speaker by four channel independent outputs are practical for installation. They can also be used as Four separate zones for individual control. There are Four channel-specific volume controls available. Complete protection covers overload, excessive temperature, short circuit, and clip. Power, signal, clip, protection, and temperature indicators.

Technical Specifications:

Model		TA-4240A
Description		Four Channel 240W Power Amplifier
Rated Power Output		4×120W
Speaker Output		100V, 70V, 4-16Ω
Input		unbalanced two RCA line inputs
Frequency Response		60-15KHz
S/N Ratio		≥85dB
THD		Less than 0.5% at 1KHz, 1/3 rated power
Cooling System		Fan auto open when internal temp reaches 55°C
Protection		Temp, overload, short circuit & clip
Power Supply		AC230V or 110V, 50-60Hz
Power Consumption		1480W
Dimensions		484x366x88mm
Weight		22.5kg

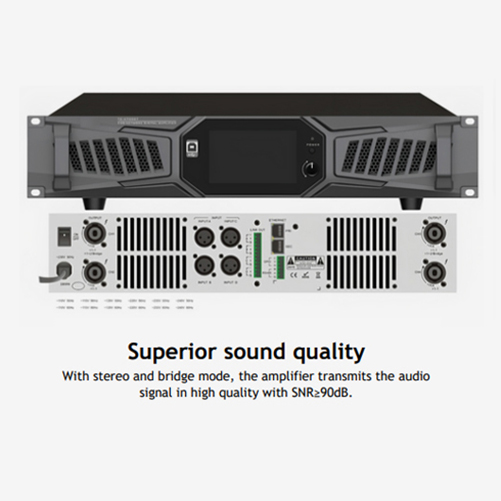

Technitia Professional Amplifier with Dante

Key Features

The latest Technitia Professional class-D Amplifier design has low distortion and high efficiency.
4.3-inch IPS capacitive touch screen; display device status: mains voltage/current/amplifier status, amplifier temperature, output mode, amplifier real-time voltage/current/power, channel volume, and speaker impedance, which can be viewed and controlled by switching menus on the panel touch screen
Switched power supply, with high efficiency; soft starter can prevent absorbing large currents into the power grid when starting up and interfering with other electrical devices.

Constant voltage and constant resistance: 100V, 70V, 16Ω, 8Ω, 4Ω
Effectively suppress power harmonics, and meet the EU green power standard.
Intelligent peak clipper controls the power module and speaker system to work within a safe range.
Standard XLR + TRS1/4″ composite input interface, simple interface design is more convenient for different use
Suitable for different places, stereo mode or bridge mode is optional.
Grounded input pin and suspension control switch.
High-performance 32-bit floating-point DSP chip processor, 96KHz sampling rate, 24-bit A/D
ARM operating system works with a 4-inch touch screen.
User-friendly PC software supports multiple simultaneous controls.
Each output channel supports 8-band parameter equalization, electronic frequency division, delay, limiter, gain, polarity and other functions.
It can be connected to the computer through USB/RJ45 interface.
With overvoltage protection, under-voltage protection, over-temperature protection, over-current protection, DC protection, output short circuit protection, temperature control fan, etc.
Support DANTE network transmission protocol, low-latency DANTE network audio transmission, 4 sending/receiving channels, network audio extender
Network TCP/IP control can realize the management of multiple devices, and the network interface can be cascaded; USB, RS485 support external protocol control
Support free switching of various input sources: analog input, AES3 digital audio input, Dante network audio input. The analog audio interface can be cascaded

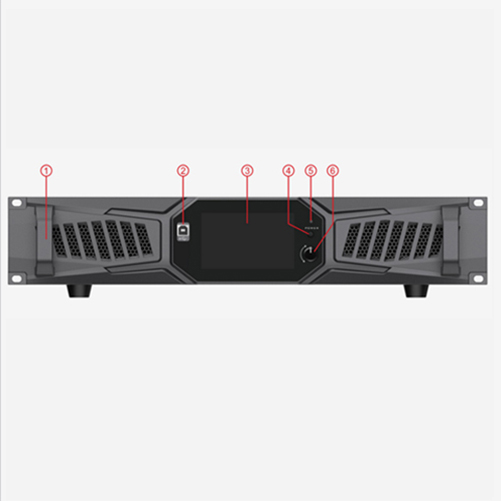

Panel handle.
USB connection interface: reserved protocol connection interface.
4.3-inch IPS capacitive touch screen.
Power switch: When the device is powered on, press and hold this button for 2 seconds to switch between standby and power-on status.
Power indicator: blue: power on; orange: standby.
Gain adjustment knob and selection button: slow rotation for 0.1dB adjustment; fast rotation for 1-5dB adjustment; no adjustment is made when the rotation speed is slow to a certain extent; press the knob to switch between channel mute and normal playback

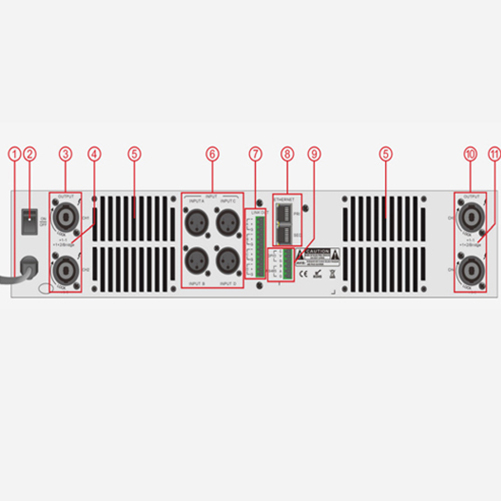

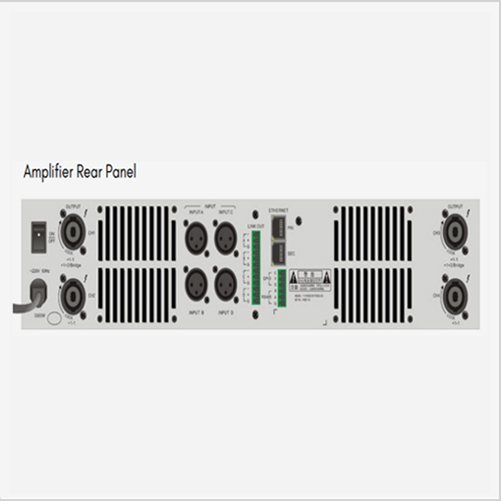

AC input power cable
AC power switch: ON; OFF
Amplifier output channel 1, 2 (Spoken)
Bridge interface mode (CH1)
Air outlet
Input channel A/B/C/D, channel A and channel C support AES3 digital audio input.
LINK OUT: parallel with the input
Control and Dante transmission interface (hand-in-hand): connect PC software and Dante audio transmission; PRI is the main network port, SEC is the secondary network port, which can be used for cascade of multiple devices.
GPIO interface (reserved control interface); RS485 interface: used to connect PC software and central control.
Power amplifier output channel 3 and 4 (Spoken).
Bridge interface method (CH3)

Technical Specifications:

Model		TA-4500DT	TA-4700DT	TA-41500DT
Output power (20-20KHz/THD≤1%)		Stereo/Matrix@ 8Ω×4: 500W×4 Stereo/Matrix@ 4Ω×4: 700W×4 Bridge @16Ω×2: 1000W×2 Bridge @8Ω×2: 1400W×2	Stereo/Matrix 8Ω×4: 700W×4 Stereo/Matrix 4Ω×4: 1000W×4 Bridge 16Ω×2:1400W×2 Bridge 8Ω×2: 2000W×2	Stereo/Matrix 8Ω×4: 1500W×4 Stereo/Matrix 4Ω×4: 2600W×4 Bridge 16Ω×2: 3000W×2 Bridge 8Ω×2: 5100W×2
Connector	XLR, DANTE interface
Input sensitivity	0dBu/6dBu/12dBu
Input impedance	10kΩ unbalanced, 20kΩ balanced
Frequency response (@ 1W power)	20Hz-20kHz /+0/-2dB
THD+N (@1/8 power)	≤0.05%
SNR (A-weighted)	≥99dB
Damping coefficient (@ 1KHz)	≥200@ 8 ohms
Resolution (@1KHz)	≥97dB
Protection mode	Over-current protection, DC protection, short circuit protection
Indicator light	Power, Protection, Distortion
Cooling method	Fan cooling
Power supply	~ 220V 50Hz
Maximum power consumption		2400W	3300W	6500W
Dimension (L×D×H)	483×450×88 (mm)			484x477x88
Weight		14kg	14.6kg	15.8kg

Popular Products

Mixer Amplifier with Source

Amplifier with Dante

About Technitia

"We are an Audio-Visuals solution provider. We started our journey in 2020 with registered office in Delhi, India. Currently we have more than 20+ direct employees providing support and ITES services....

catagories

Home
About Us
Professional Audio
Digital Conference System
Accessories
Contact

GET IN TOUCH

Technitia
A-334, Sector-XU-2
Greater Noida
Uttar Pradesh-201310
E: sales@technitia.in

social media
