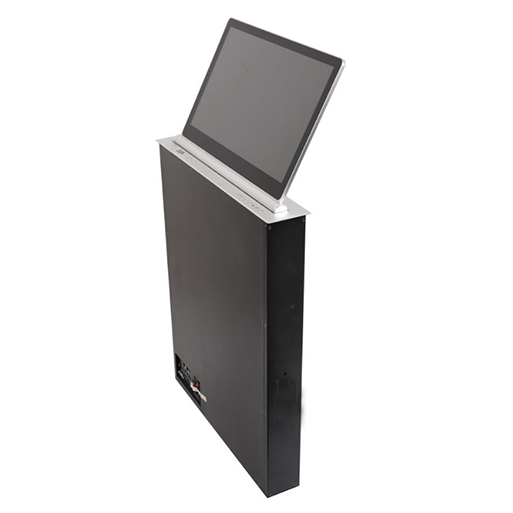

Technitia Ultra-Thin LCD Monitor Lift with Retractable Screen

The Technitia Motorised retractable monitor was created with an ultra-light design that relied on an ultra-thin LED monitor lift. The screen surface, monitor shell, and housing are all composed of aluminium alloy material, making the device smarter and lighter. Hidden LED monitor in office furniture for audio video conferencing system.

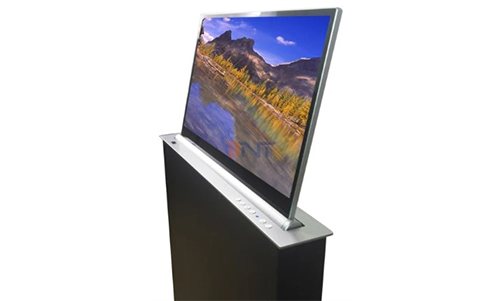

The monitor lift mechanism is built into meeting and conference room tables and is combined with a built-in LED screen monitor and a motorised lifting display monitor. The monitor lift's FHD screen could be retractable, elevating or lowering vertically. Automatically moving monitor off tabletop via remote; motorised lowering screen down and concealed beneath table when not in use. If you reach the bottom of the LCD monitor lift mechanism, the screen will be powered off; if you reach the top, the screen will be powered on automatically.

Screen pitch angle 0-30 degree Built-in 13.3-23.6 inch high-definition 1920*1080P high-definition ultra-thin display, can be built-in touch screen, with front camera according as per requirements. 0-30 degree screen pitch angle, 0-60 degree models for selection. The panel has a 1.8mm chamfered R3 design, which is more convenient for installation, no need to open a counterbore for the panel

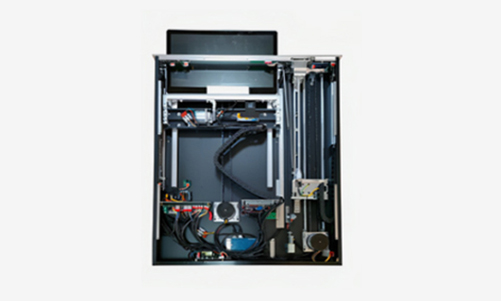

Full aluminum alloy design Ultra-light design, all aluminum alloy (Panel+screen frame+case box, including all the parts inside made by aluminum alloy material, ) Motorized by tank chain and mechanical gear, smooth, fast and quiet when working. Protecting function of LCD monitors by cutting the electricity off automatically. Switch on LCD motorized lift panel, RF remote control, RS232 AND rs 485 central control for intelligent conference system.

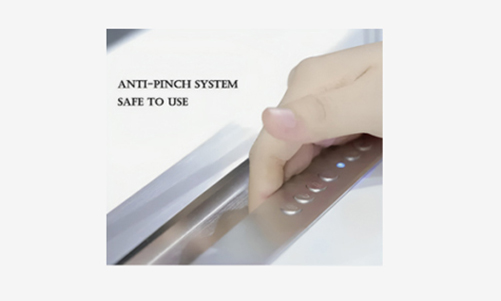

All-aluminum chassis with a compact size, super light and ultra thin design, high-quality aluminium profile and CNC carved processing, and an exquisite environment. Anti-pinching design, safety protection, electro-mechanical damping concept, it will bounce back if any resistance is encountered (closed door on top panel). When a person leaves their fingers inside, the finger protection feature produces a buzzer sound and stops.

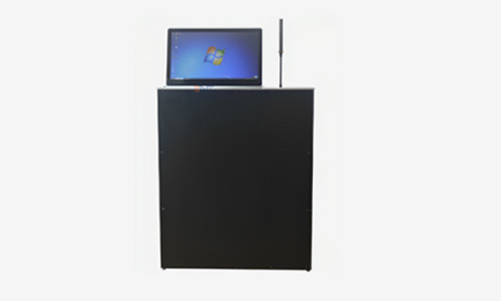

Conference system solution Monitor screen lift mechanism is designed as advance hiding equipment with FHD screen and built in microphone for audio video. conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different monitor size. Have models that microphone and screen work together/ separate. It is widely use in conference system, audio video conference system, paperless conference system, etc.

Product Compatibility
BOSCH digital conference system
AMX, Crestron, Extron or other 3rd party central control system
WIFI network control system
Office paperless conference system
CISCO or other 3rd Network video System

Application
conference room, meeting room, training room, boardroom, Army command room, Presidential election room, news release, seminar room,school Academic seminar room,office senior executive meeting room.

Product Integration
Built in Touch Screen
Built in Discussion Microphone (together)
Built in Discussion Microphone (separate)
Built in Camera (optional)
Built in Mini PC (optional)
Built in Name plate (Optional)
Built in QI wireless phone charger (optional)
Built in Double screen (optional)
Built in different monitor option:
13.3, 15.6, 17.3, 18.4, 18.5, 21.5, 23.6 inch
