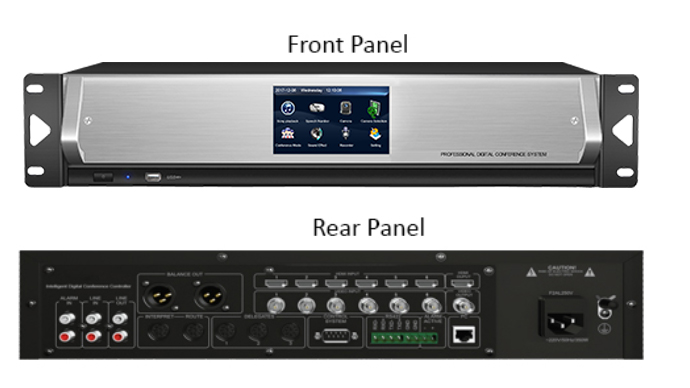

T-DCU Digital Conference Controller
TECHNITIA's conference venue can maintain order by implementing restrictions on the use of the spokesperson and utilizing a timed speech function. Additionally, the availability of four camera ports allows users to connect up to four cameras, enhancing tracking capabilities. Furthermore, conference room audio systems are straightforward to wire, feature a highly integrated system design, provide substantial power, and support message displays in English. These qualities render them ideal for sophisticated conference audio configurations.
Key Features: | ||
|
||
The Technitia audio conference system boasts a range of features including data management, camera tracking, automatic inspection, check-in, and voting functionalities. Users have the flexibility to designate any unit as a VIP unit through the controller. The system is equipped to conduct automatic or manual inspections on various components of the conference units such as screens, buttons, LED lights, microphones, and speakers. The Digital Signal Processor (DSP) integrated into the controller offers multiple EQ modes, allowing users to choose the most appropriate setting for the conference environment. Furthermore, the controller features frequency shifters to minimize feedback, audio input/output ports for enhanced broadcasting capabilities, and timed speech and spokesman restrictions to facilitate orderly conduct during conferences. | ||
Technical Parameters:
| Line input voltage | 250 (±30) mV | |
| Alarm input voltage | 250 (±30) mV | |
| Line output voltage | 1 (±0.1) V | |
| Balance output voltage | 1 (±0.1) V | |
| Frequency response | 20Hz-20kHz（±3dB） | |
| SNR | >80 dB | |
| Harmonic distortion | <0.3% | |
| Output power | ≤110W/3-way, 24V | |
| Max. power | 350W | |
| Static power consumption | 15W | |
| Quantity of maximum units | 128 ps | |
| Control interface | RJ45, RS232, RS422 | |
| Power source | AC220V~50Hz/320W | |
| Net Weight | 6.9kg | |
| Dimension | 484×385×88 mm |

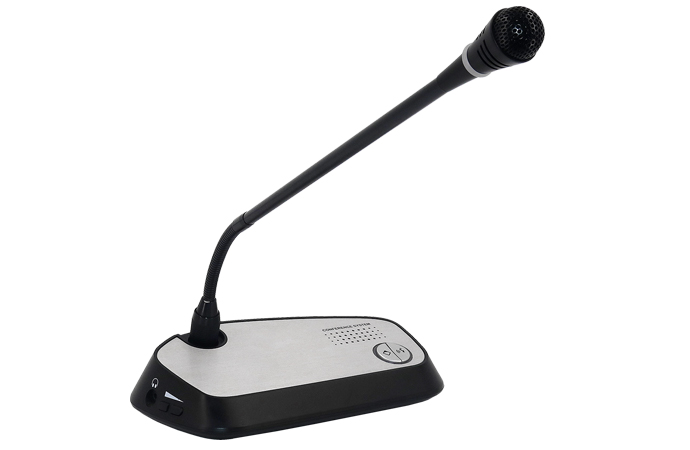

T-CU01 Digital Chairman Microphone
Technitia T-CU01 Desktop Chairman Speech Unit offers a
comprehensive range of functionalities, including speech delivery,
check-in, and self-checking capabilities. Equipped with a flexible
gooseneck microphone, a built-in magnetic loudspeaker, a headphone
jack, and featuring power-on indicator lights, buttons, and light
indicators.
In VOICE mode, this chairman microphone enables voice control on/off
functions, leveraging high-speed digital processors and HiFi audio
circuits. Additionally, it provides LCD screen work status indicators.
The chairman unit holds the prerogative to deliver speeches and
approve delegate speech requests. It exercises full control over
maintaining discipline during conferences. Within the D62 series
digital conference system, two chairman units can operate
simultaneously without positional restrictions. Conference units are
passive tools powered by controllers, with the chairman microphone
requiring a 24V input voltage.
Key Features: | ||
|
|
|
| Type | Desktop Chairman Mic | Port on the unit | 8pin DIN socket | |||
| Output frequency Response | 45Hz-18kHz（-3dB） | Type of microphone | Electret, Condenser type | |||
| Speaker Power | 1.5W | Frequency response | 40Hz-20kHz（-3dB） | |||
| Static power consumption | < 1W | Sensitivity | -45dBV/pa | |||
| Max. power consumption | 2W | Input impedance | 2kΩ | |||
| SNR | >80dB | Equivalent Noise | 20dB (SPL) | |||
| Crosstalk Attenuation | >80dB | Max SPL | 125dB (THD < 3% | |||
| Harmonic distortion | < 0.5% | Working Power Supply | DC 24V power supply | |||
| Headphone Output | >9dBu, 8-32Ω, 3.5mm |
T-DU02 Delegate Microphone
The T-DU02 Desktop Delegate Speech Unit offers a range of features including speech capabilities, check-in functionality, and selfchecking mechanisms. Equipped with a flexible gooseneck microphone, a built-in magnetic loudspeaker, a headphone jack, and various indicator lights, this unit ensures versatile functionality. When operating in VOICE mode, it enables voice control on/off functions. With advanced digital processors, HiFi audio circuits, and LCD screen status indicators, it guarantees efficient performance. These conference units operate as passive devices, drawing power from controllers at a voltage of 24V. They are user-friendly, deliver clear audio, easy to install, and boast a modern design.
Key Features: | ||
|
|
|
| Type | Desktop Delegate Mic | Port on the unit | 8pin DIN socket | |||
| Output frequency Response | 45Hz-18kHz（-3dB） | Type of microphone | Electret, Condenser type | |||
| Speaker Power | 1.5W | Frequency response | 40Hz-20kHz（-3dB） | |||
| Static power consumption | <1W | Sensitivity | -45dBV/pa | |||
| Max. power consumption | 2W | Input impedance | 2kΩ | |||
| SNR | >80dB | Equivalent Noise | 20dB (SPL) | |||
| Crosstalk Attenuation | >80dB | Max SPL | 125dB (THD<3% | |||
| Harmonic distortion | <0.5% | Working Power Supply | DC 24V power supply | |||
| Headphone Output | >9dBu, 8-32Ω, 3.5mm |

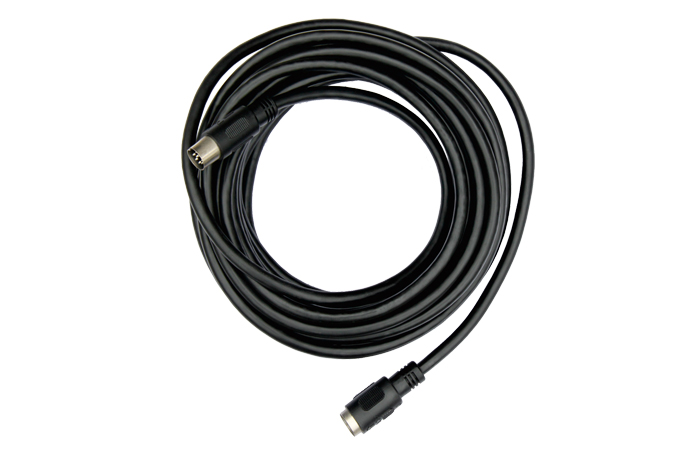

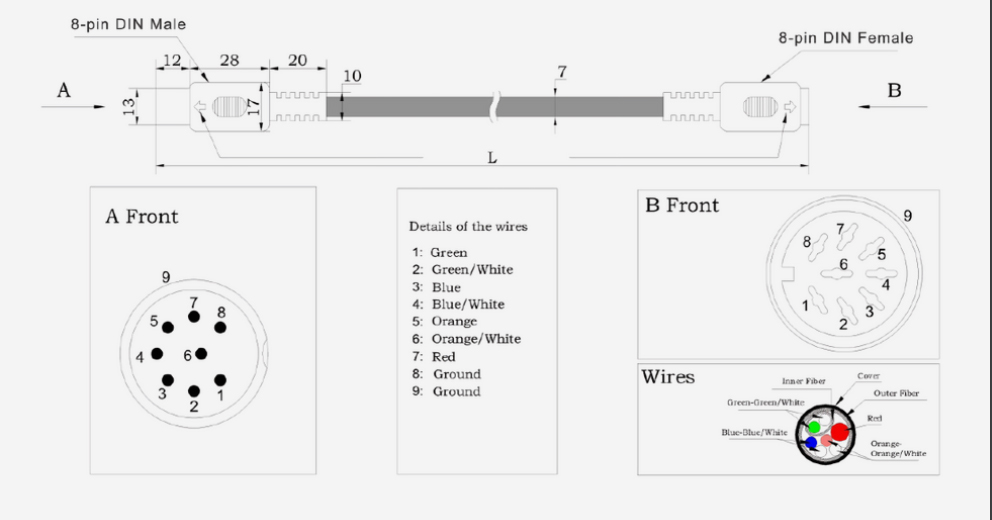

Conference 8-pin DIN Wire
T-CC02 / T-CC05 / T-CC10 / T-CC20 / T-CC50 / T-CC100
- The intelligent conference system requires an extension cable to connect between terminals.
- Utilizes an 8-pin high-density cable known for its stability and reliability.
- Features one male jack and one female jack for seamless connections.
| Model | T-CC02 | T-CC05 | T-CC10 | T-CC20 | T-CC50 | T-CC100 | ||||||
| Length | 2m | 5m | 10m | 20m | 50m | 100m | ||||||
 | ||||||||||||
