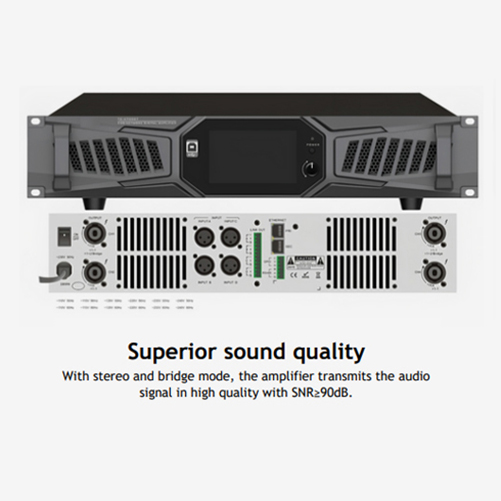

Technitia Professional Amplifier with Dante


Key Features

  • The latest Technitia Professional class-D Amplifier design has low distortion and high efficiency.
  • 4.3-inch IPS capacitive touch screen; display device status: mains voltage/current/amplifier status, amplifier temperature, output mode, amplifier real-time voltage/current/power, channel volume, and speaker impedance, which can be viewed and controlled by switching menus on the panel touch screen
  • Switched power supply, with high efficiency; soft starter can prevent absorbing large currents into the power grid when starting up and interfering with other electrical devices.
  • Constant voltage and constant resistance: 100V, 70V, 16Ω, 8Ω, 4Ω
  • Effectively suppress power harmonics, and meet the EU green power standard.
  • Intelligent peak clipper controls the power module and speaker system to work within a safe range.
  • Standard XLR + TRS1/4″ composite input interface, simple interface design is more convenient for different use
  • Suitable for different places, stereo mode or bridge mode is optional.
  • Grounded input pin and suspension control switch.
  • High-performance 32-bit floating-point DSP chip processor, 96KHz sampling rate, 24-bit A/D
  • ARM operating system works with a 4-inch touch screen.
  • User-friendly PC software supports multiple simultaneous controls.
  • Each output channel supports 8-band parameter equalization, electronic frequency division, delay, limiter, gain, polarity and other functions.
  • It can be connected to the computer through USB/RJ45 interface.
  • With overvoltage protection, under-voltage protection, over-temperature protection, over-current protection, DC protection, output short circuit protection, temperature control fan, etc.
  • Support DANTE network transmission protocol, low-latency DANTE network audio transmission, 4 sending/receiving channels, network audio extender
  • Network TCP/IP control can realize the management of multiple devices, and the network interface can be cascaded; USB, RS485 support external protocol control
  • Support free switching of various input sources: analog input, AES3 digital audio input, Dante network audio input. The analog audio interface can be cascaded

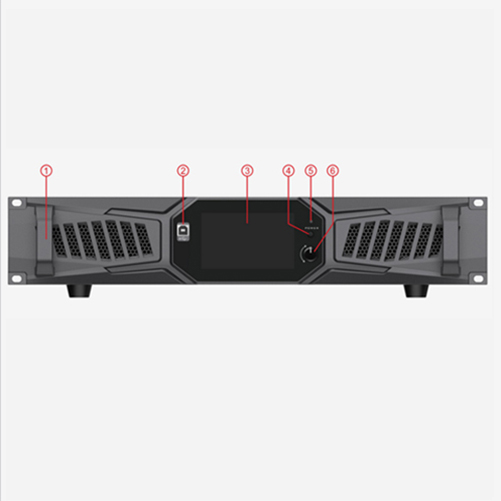

  • Panel handle.
  • USB connection interface: reserved protocol connection interface.
  • 4.3-inch IPS capacitive touch screen.
  • Power switch: When the device is powered on, press and hold this button for 2 seconds to switch between standby and power-on status.
  • Power indicator: blue: power on; orange: standby.
  • Gain adjustment knob and selection button: slow rotation for 0.1dB adjustment; fast rotation for 1-5dB adjustment; no adjustment is made when the rotation speed is slow to a certain extent; press the knob to switch between channel mute and normal playback

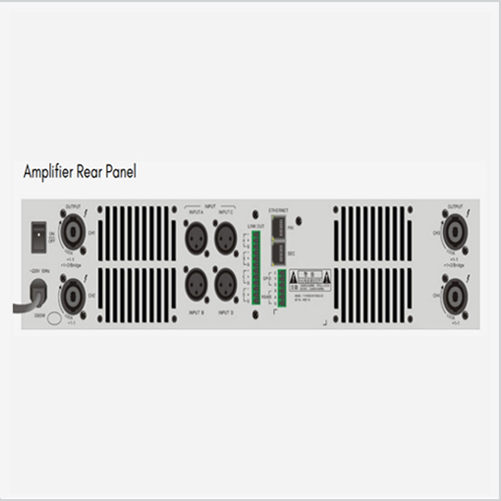

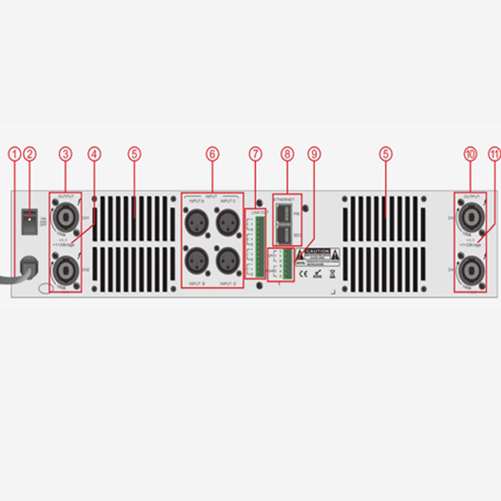

  • AC input power cable
  • AC power switch: ON; OFF
  • Amplifier output channel 1, 2 (Spoken)
  • Bridge interface mode (CH1)
  • Air outlet
  • Input channel A/B/C/D, channel A and channel C support AES3 digital audio input.
  • LINK OUT: parallel with the input
  • Control and Dante transmission interface (hand-in-hand): connect PC software and Dante audio transmission; PRI is the main network port, SEC is the secondary network port, which can be used for cascade of multiple devices.
  • GPIO interface (reserved control interface); RS485 interface: used to connect PC software and central control.
  • Power amplifier output channel 3 and 4 (Spoken).
  • Bridge interface method (CH3)

Technical Specifications:

Model   TA-4500DT   TA-4700DT   TA-41500DT
Output power (20-20KHz/THD≤1%)
Stereo/Matrix@ 8Ω×4: 500W×4
Stereo/Matrix@ 4Ω×4: 700W×4
Bridge @16Ω×2: 1000W×2
Bridge @8Ω×2: 1400W×2

Stereo/Matrix 8Ω×4: 700W×4
Stereo/Matrix 4Ω×4: 1000W×4
Bridge 16Ω×2:1400W×2
Bridge 8Ω×2: 2000W×2

Stereo/Matrix 8Ω×4: 1500W×4
Stereo/Matrix 4Ω×4: 2600W×4
Bridge 16Ω×2: 3000W×2
Bridge 8Ω×2: 5100W×2
Connector
XLR, DANTE interface
Input sensitivity
0dBu/6dBu/12dBu
Input impedance
10kΩ unbalanced, 20kΩ balanced
Frequency response (@ 1W power)
20Hz-20kHz /+0/-2dB
THD+N (@1/8 power)
≤0.05%
SNR (A-weighted)
≥99dB
Damping coefficient (@ 1KHz)
≥200@ 8 ohms
Resolution (@1KHz)
≥97dB
Protection mode
Over-current protection, DC protection, short circuit protection
Indicator light
Power, Protection, Distortion
Cooling method
Fan cooling
Power supply
~ 220V 50Hz
Maximum power consumption   2400W   3300W   6500W
Dimension (L×D×H)
483×450×88 (mm)
484x477x88
Weight   14kg   14.6kg   15.8kg
