Technitia T-6240VA Digital Voice Alarm Controller 240 Watt

Technitia T-6500VA Digital Voice Alarm Controller 500 Watt

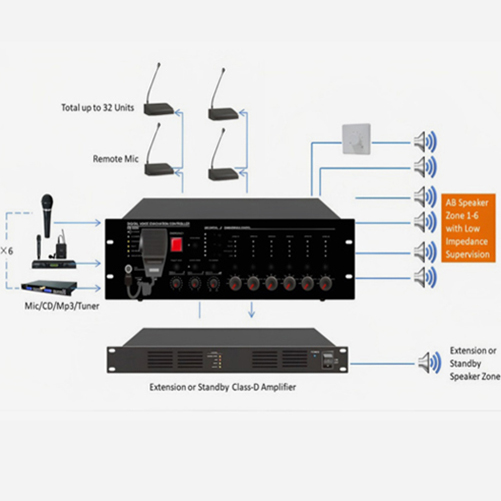

6 Zone EVAC Controller, integrated 240W & 500 Watt class-D amplifier, integrated EVAC, alert voice message by SD card, fireman microphone, AB speaker line low impedance supervision, amplifier auto switchover to standby when fault, extension amplifier connector and AC and DC battery operation.

Key Features:

  • Digital voice evacuation system all in one amplifier.
  • Specifications meet the standards of EN54-32 & EN608409.
  • EN54-16 standards certificate is under taken.
  • Built-in 240W & 500 Watt 6 zone class-D amplifier.
  • Integration of EVAC controller, paging system, PA system & BGM system together.
  • Built-in two separate players for EVAC and alert voice message by SD card.
  • Built-in 6 zone AB speaker line low impedance supervision.
  • amplifier auto changeover into standby when fault.
  • With external amplifier input to expansion the power.
  • Capacity of connection 32 units remote microphones.
  • Red button EVAC message push to activate with priority except fireman microphone.
  • 6 zone separate indicator for EVAC, fault, music/paging & select.
  • System indicators of AC, DC, fault and indicators for EVAC, alert & fireman microphone.
  • Zone capacity of 120 zones by cascaded 19 routers.
  • With 8 programmable control inputs and 8 programmable control outputs for voice evacuation system.
  • With Fault, EVAC outputs and Reset input for third party system integration.
  • With fireman microphone of highest priority.
  • Priority level: fireman mic, EVAC, input 1, remote microphone, timer & BGM.
  • Two combo inputs for mic/line, 4 line inputs and one REC output.
  • 6 zone speaker outputs with separate zone volume control (ATT).

Technical Specifications:

Model   T-6240VA   T-6500VA
Description   6 Zone Voice Evacuation Amplifier   6 Zone Voice Evacuation Amplifier
Rated Power Output   240W   500W
Fireman Microphone   5Mv, 600Ω   5Mv, 600Ω
Line 1-2 Inputs   385mV, 10kΩbalanced Combo   385mV, 10kΩbalanced Combo
Line 3-6 Inputs   350mV, 10kΩ, RCA   350mV, 10kΩ, RCA
Frequency Response   80Hz~20kHz   80Hz~20kHz
THD   ＜1% at RMS,1KHz   ＜1% at RMS,1KHz
S/N Ratio   >70dB   >70dB
Speaker Output   100V AB 8 zone speaker outputs   100V AB 8 zone speaker outputs
REC Output   200mV   200mV
Control Input & Output   8 programmable control inputs: Max 3.3V (voltage mode) or 0V closed contact 8 programmable control outputs: 0V closed contact; Control output for fault & EVAC: 0V closed contact; Reset control input: 0V closed contact   8 programmable control inputs: Max 3.3V (voltage mode) or 0V closed contact 8 programmable control outputs: 0V closed contact; Control output for fault & EVAC: 0V closed contact; Reset control input: 0V closed contact
Voice Message   MP3 or WMA format, two separate players of SD card with protection cover, programmable voice message up to 255, 10 years valid   MP3 or WMA format, two separate players of SD card with protection cover, programmable voice message up to 255, 10 years valid
Event Record   HEX format, Hard Flash memory, events up to 1000 records, 10 years valid   HEX format, Hard Flash memory, events up to 1000 records, 10 years valid
Operation Environment   Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Operation Humidity: < 95%   Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Operation Humidity: < 95%
Power Consumption   600W   600W
Power Supply   AC230V or 115V & DC24V battery inputs, 50-60HZ   AC230V or 115V & DC24V battery inputs, 50-60HZ
AC Fuse   250V/6.3A, slow type and restorable fuse   250V/6.3A, slow type and restorable fuse
Dimension   484(W)×132(H)×449(D) mm   484(W)×132(H)×449(D) mm
Weight   24kg   24kg

Technitia
Technitia

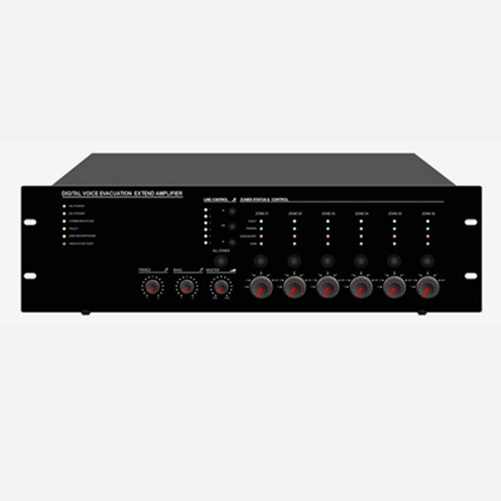

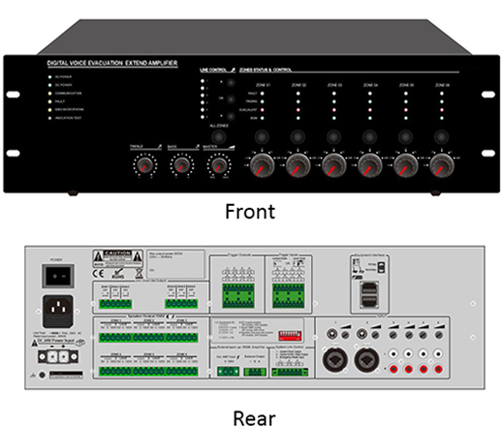

T-6240ET Voice Alarm Router 240 Watt

T-6240ET Voice Alarm Router 500 Watt

Key Features:

  • The router is needed for more than 6 zone voice alarm system.
  • Built-in 240W & 500W 6 zone class-D amplifier.
  • With same function with EVAC-500 voice alarm controller except control function.
  • The expansion router will be controlled by master voice alarm controller.
  • Integration of EVAC controller, paging system, PA system & BGM system together.
  • Built-in two separate players for EVAC and alert voice message by SD card.
  • Built-in 6 zone AB speaker line low impedance supervision.
  • Built-in amplifier auto changeover into standby when fault.
  • Capacity of connection 32 remote microphones.
  • 6 zone speaker outputs with separate zone volume control (ATT)
  • Zone capacity of 120 zones by cascaded 19 routers.
  • With 8 programmable control inputs and 8 programmable control outputs for voice evacuation system.
  • With Fault, EVAC outputs and Reset input for third party system integration.
  • Priority level: fireman microphone, EVAC, input 1, remote microphone, timer & BGM.
  • IP network module for optional to buy.
  • AC 230V and DC24V battery input. Auto switch into the battery backup when AC fails

Technical Specifications:

Model   T-6240ET   T-6500ET
Description   6 Zone Voice Evacuation Amplifier   6 Zone Voice Evacuation Amplifier
Rated Power Output   240W   500W
Fireman Microphone   5Mv, 600Ω   5Mv, 600Ω
Line 1-2 Inputs   385mV, 10kΩbalanced Combo   385mV, 10kΩbalanced Combo
Line 3-6 Inputs   350mV, 10kΩ, RCA   350mV, 10kΩ, RCA
Frequency Response   80Hz~20kHz   80Hz~20kHz
THD   ＜1% at RMS,1KHz   ＜1% at RMS,1KHz
S/N Ratio   >70dB   >70dB
Speaker Output   100V AB 8 zone speaker outputs   100V AB 8 zone speaker outputs
REC Output   200mV   200mV
Control Input & Output   8 programmable control inputs: Max 3.3V (voltage mode) or 0V closed contact 8 programmable control outputs: 0V closed contact; Control output for fault & EVAC: 0V closed contact; Reset control input: 0V closed contact   8 programmable control inputs: Max 3.3V (voltage mode) or 0V closed contact 8 programmable control outputs: 0V closed contact; Control output for fault & EVAC: 0V closed contact; Reset control input: 0V closed contact
Voice Message   MP3 or WMA format, two separate players of SD card with protection cover, programmable voice message up to 255, 10 years valid   MP3 or WMA format, two separate players of SD card with protection cover, programmable voice message up to 255, 10 years valid
Event Record   HEX format, Hard Flash memory, events up to 1000 records, 10 years valid   HEX format, Hard Flash memory, events up to 1000 records, 10 years valid
Operation Environment   Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Operation Humidity: < 95%   Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Operation Humidity: < 95%
Power Consumption   600W   600W
Power Supply   AC230V or 115V & DC24V battery inputs, 50-60HZ   AC230V or 115V & DC24V battery inputs, 50-60HZ
AC Fuse   250V/6.3A, slow type and restorable fuse   250V/6.3A, slow type and restorable fuse
Dimension   484(W)×132(H)×449(D) mm   484(W)×132(H)×449(D) mm
Weight   24kg   24kg

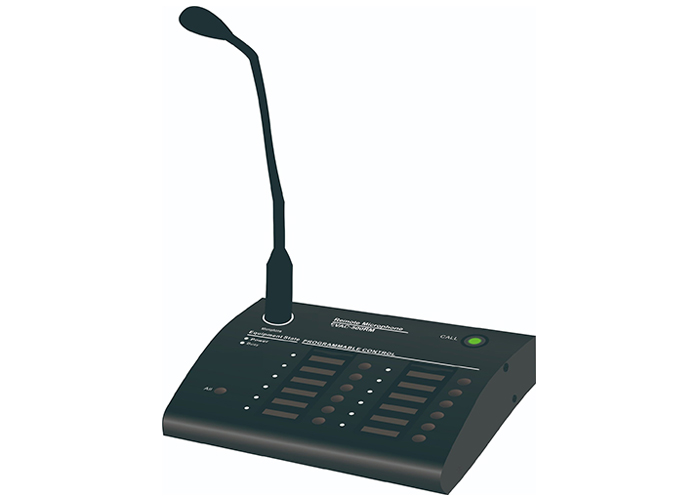

T-6500RM 12 Zone Remote Microphone
T-6500FM Remote Fireman Microphone

Key Features:

  • Digital voice evacuation system remote paging microphone.
  • Each microphone of 12 zone capacity.System support 32 remote microphones of loop connection.
  • System indicators of AC, DC, fault, Mic status and test.
  • 12 zone selection buttons and all zone button.
  • 12 zone selection buttons can be programmed.
  • Two RJ45 ports for connection with EN-6500 and next remote microphone.
  • One 3.5mm line input, with output volume control.
  • Support PPT and normal paging two modes.
  • CAT5 or CAT6 cable communication up to 600 meters.
  • DC24V power supply from EVAC-500 controller.
  • Support loop connection and paging microphone failure has been supervised.

Technical Specifications:

Model T-6500RM THD ＜1% at RMS,1KHz
Description Voice Alarm Remote Microphone S/N Ratio >70dB
Power Consumption 3W Operating Temp 20℃ to +70℃
Zone Capacity 12 Zones Power Supply DC24V, ±20%
System Capacity 32 Remote microphones Humidity < 95% no condensation
Line Inputs 350mV, 10kΩ Dimension 256(W)×149(H)×52(D) mm
Mic Input 5mV, 600Ω Weight 1.5kg
Frequency Response 80Hz~16kHz

T-6500RM 12 Zone Remote Microphone

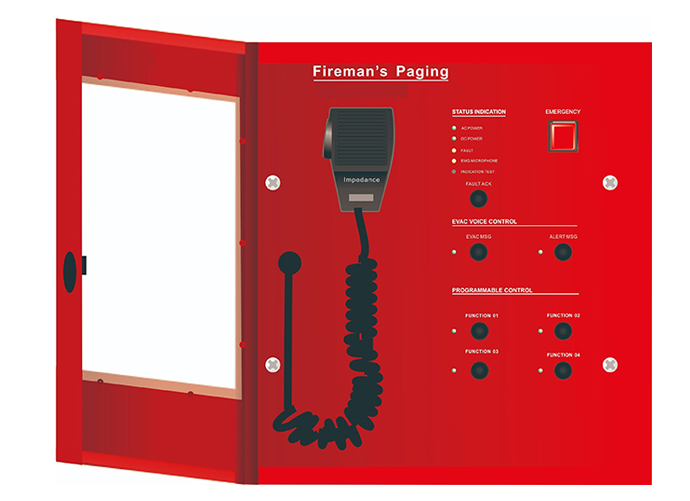

T-6500FM Remote Fireman Microphone

Key Features:

  • Fireman microphone meet the EN54 standard.
  • programmable keys and EVAC/Alert.
  • Remote pre-recorded message broadcast in case of emergency.
  • Remote fireman microphone highest priority announcement in case of emergency
  • Emergency microphone signal path real-time monitoring.
  • Different levels of priority configurable.
  • Support DC 24V phantom power supply from the controller.
  • With AC, DC, fault, MIC and indication test four indicators.
  • IP55 outdoor operation support.
  • With emergency activation button for all zone EVAC operation.
  • Communication distance up to 600 meters.
  • Communication with controller through CAT6 cable.
  • Each system supports 32 units of fireman microphone maximum.
  • Support normal paging mode and PTT modes.
  • With DIP switch to set its ID on rear panel.
  • Support line redundancy connection.
  • With lock and key to ensure access permission.

Technical Specifications:

Model EN-6500FM Power Supply Phantom power 20V ~ 27.5V, ±20%
Description Fireman Microphone IP Rate >IP55
Power Consumption 3W Operating Temp/Humidity -20℃ to +50℃; < 95% no condensation
System Capacity 32 units SPL 30mV
Frequency Response 80Hz~16kHz Finish Stainless steel in red and ABS cover
S/N Ratio >70dB Dimension & Weight 298(W)×298(D)×89(H) mm; 3.8kg
